Before a food plant opens, a HACCP auditor walks the production floor. They check every surface, including shelving.
They won’t ask if the racks “look good.” They’ll run a finger under the shelf panel. They’ll check bolt holes for trapped residue. They’ll inspect shelf edges for sharp corners that could tear packaging. They’ll ask: can this rack handle daily high-pressure washdown without peeling?
A painted cold-rolled steel rack fails all these checks. Coating blisters under high-pressure water. Welds trap food particles. Bolt holes collect moisture and breed bacteria. Any one of these gets flagged in the audit report.
In a food processing plant, shelving isn’t storage. It’s part of the HACCP plan.
Material — 304 Isn’t Optional in Food Plants
201 stainless steel is not HACCP-compliant for food processing zones. The standard is clear: any surface that supports food production must be corrosion-resistant, seamless, and non-particle-shedding. 304 meets FDA, EU 1935/2004, and GB 4806.9 food-grade material standards.
| Zone | Grade | HACCP Compliant? |
|---|---|---|
| Raw material warehouse (sealed, dry) | 201 | ✅ Sealed goods only |
| Processing floor (fresh, chilled, thawing) | 304 | ✅ Required |
| Packaging area (direct food contact) | 304 | ✅ Required |
| Cold room / freezer | 304 | ✅ Required |
| Washdown / sanitation zone | 304 | ✅ Required |
| QC lab | 304 | ✅ Required |
304’s value in food plants isn’t about looking clean. It’s about: surviving high-pressure washdown without peeling, withstanding daily sanitizer exposure without reacting, and shedding zero particles into the production environment. An auditor checks all three.
400kg Per Shelf — What That Carries in a Food Plant
Food plant loads aren’t single heavy items. They’re hundreds of uniform packages — flour bags, canned goods, frozen blocks, ingredient totes. The weight distributes evenly across the shelf.
400kg per shelf ≈ 100 bags of flour (5kg each)
≈ 200 stainless steel ingredient totes (2.5kg each)
≈ 50 cases of canned product (10kg each)
≈ 1 full pallet of frozen meat blocks (1200×800mm)
| Tiers | Per Shelf | Total Capacity |
|---|---|---|
| 4 | 400kg | 1,600kg |
| 3 | 400kg | 1,200kg |
| 5 | 400kg | 2,000kg |
400kg is the standard for food processing. 500kg upgrades available for central kitchens and large cold-chain facilities with heavier pallet loads.
Why Boltless in Food Plants — The Auditor’s Perspective
A HACCP auditor inspects shelving the same way every time: they run a finger along shelf undersides and inside bolt holes. If the finger comes back with residue — flagged.
| Factor | Bolted Rack | Butterfly Snap (Boltless) |
|---|---|---|
| High-pressure washdown | Water jets force moisture into bolt holes, pools, breeds mold | No through-holes, water runs off and dries |
| Sanitizer residue | Sanitizer pools in threads, accelerates corrosion | Surface exposed, residue evaporates |
| Routine inspection | Auditor checks bolt holes for grime | One pass, no crevices to check |
| Cross-contamination | Threaded gaps in raw/cooked zone separation | Continuous surface, simple to confirm clean |
| Microbial growth | Warm, damp threads = ideal bacteria environment | No hidden voids for microbial colonization |
The boltless design isn’t about convenience in a food plant. It’s about passing HACCP inspection without the auditor finding anything to write down.

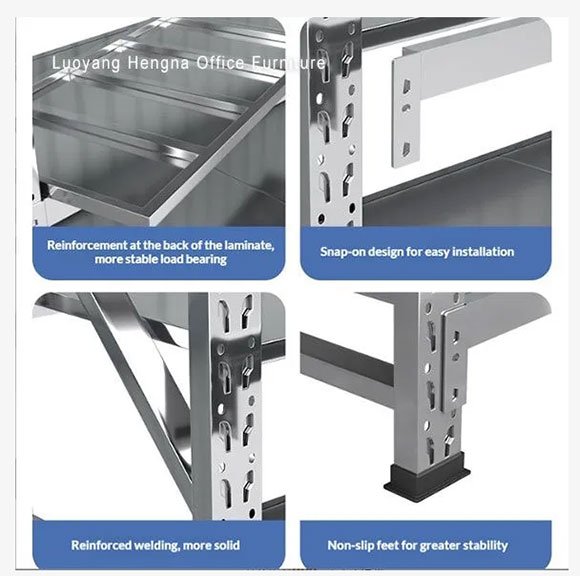

Build Details — Food Plant Specifics
Seamless surface: All welds ground and polished smooth. Not for appearance — so the auditor can’t find a ridge where food residue collects. Any uneven spot catches particles.
Rounded edges: Shelf corners are radiused, not sharp. A torn ingredient bag from a sharp shelf edge means a full batch gets scrapped in a compliant food plant.
Adjustable height (50mm increments): Food production lines shift — bread this month, frozen dumplings next. The ingredient packaging changes entirely. Shelf height reconfigures to fit the new SKUs.
Anti-slip pads + anchor holes: High-pressure floor washdown pushes racks across wet floors. Rubber pads plus pre-drilled anchor holes mean the rack stays where you bolted it.
Experience — A Food Plant That Passed Audit With Our Racks
A Southeast Asian seasoning manufacturer — exporting to Europe — needed HACCP-compliant shelving in 2023. Their QC lead set one requirement: “Your product should never become a problem during our audits.”
We supplied 304 stainless steel racks across their production floor, packaging zone, and cold room. Two external HACCP audits since installation. Two passes. Zero shelving-related findings.
The rounded corners, seamless welds, and boltless design weren’t theoretical. They were validated by an actual auditor in an actual food plant.
KD Packaging — Food Plant Requirements
Food plant shelving packaging has a requirement no other industry demands: packaging materials must be dust-free, odor-free, and leave no residue on the rack surface. Plastic tape residue alone can trigger a non-conformance in a food facility.
Our KD packaging: food-grade PE film, cardboard separators, paper-based tape. No plastic adhesive tape, no loose fibers, no chemical odors. Columns, shelves, and beams packed separately. A 40ft HC container holds roughly 5x the units of assembled racks. On arrival, one person assembles in 30 minutes — no tools needed.
FAQ Section
Q: What type of shelving is required for HACCP compliance in a food processing plant?
A: 304 stainless steel shelving with seamless surfaces, no bolt holes, and smooth polished welds. The rack must withstand daily high-pressure washdown and sanitizer exposure without coating failure.
Q: Can 201 stainless steel be used in a food processing plant?
A: Only in dry storage areas for sealed-packaged goods. All wet areas, processing zones, and packaging areas require 304 grade for HACCP compliance.
Q: How often does food grade shelving need to be cleaned?
A: Daily washdown with high-pressure water and food-safe sanitizer. The shelving must tolerate this without rust or surface degradation — 304 stainless handles it, coated steel does not.
Q: Is boltless shelving better than bolted shelving for food plants?
A: Yes. HACCP auditors specifically check bolt holes for trapped residue and moisture. Boltless butterfly snap connectors have no through-holes — cleaning is complete and surface inspection is simple.
Q: What certifications does your shelving have?
A: CE certified. Our 304 grade materials meet food-grade standards applicable to food processing environments.
Q: Do you have experience supplying food processing plants?
A: Yes. A Southeast Asian seasoning factory has used our 304 stainless steel shelving since 2023. The racks passed two HACCP external audits with zero shelving findings.
Q: What packaging do you use for food plant shelving?
A: Food-grade PE film, cardboard separators, and paper-based tape — no plastic adhesive residue. Dust-free and odor-free for food facility environments.
Q: What is the lead time?
A: Standard 304 models: 7-15 days. Custom sizes: 15-30 days. Quote within 24 hours.
Q: Do you offer OEM?
A: Yes — logo printing, custom packaging, custom manuals, and size customization.
Have a specific food plant layout or HACCP requirement? Ask us — we reply within 24 hours.
Food Grade Stainless Steel Shelving Specification Table
| Parameter | Standard | Options / Notes |
|---|---|---|
| Material | 304 Stainless Steel | 201 available for dry sealed storage |
| Per-shelf capacity | 400kg | Also: 300kg, 500kg |
| Total capacity (4-tier) | 1,600kg | |
| Height | 2,000mm | Fixed |
| Width | 1,200 / 1,500 / 1,800 / 2,000mm | Per processing floor layout |
| Depth | 400 / 500 / 600mm | Per processing floor layout |
| Standard tiers | 4 | 3 or 5 on request |
| Surface finish | Polished seamless, rounded edges | HACCP-ready |
| Height adjustment | 50mm increments | Butterfly snap, tool-free |
| Assembly | Butterfly snap, boltless | Zero through-holes |
| Base | Anti-slip pads + pre-drilled anchor holes | Withstands high-pressure washdown |
| Packaging | KD | Food-grade PE film + cardboard + paper tape |
| Certification | CE | Materials meet food-grade standards |
| Quote response | Within 24 hours |
CTA
Setting up a food processing line or preparing for HACCP audit?
Contact us for a quote within 24 hours. Sample orders accepted. OEM available — logo printing, custom packaging, and custom manuals.
