Factory maintenance technicians spend a large part of each shift searching for tools. Wrenches left on the compressor housing. Socket sets still sitting on the workbench from the morning overhaul. Screwdrivers borrowed by the second-shift crew and never returned.
This mobile tool cabinet solves that problem. Every tool has a designated spot — wrenches on the pegboard, blades in the knife holder slots, sockets and hardware inside the lockable cabinet. Roll it to the equipment, unlock, work, lock, roll to the next job.
Product Information
This tool cabinet measures 38.2 inches wide, 26.8 inches deep, and 19.7 inches tall (970 × 680 × 500 mm). The body is built from cold-rolled steel with a powder-coated finish. The structure includes a double-door lockable cabinet, a removable steel pegboard panel, knife holder slots on the side, and four 3-inch swivel casters with brakes. An aluminum alloy handle is mounted on the side for pushing.

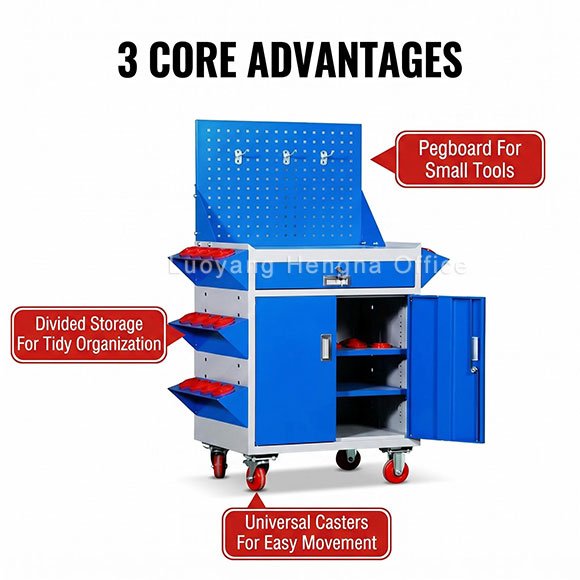

Mobile Tool Cabinet with Knife Holder Slots Key Features

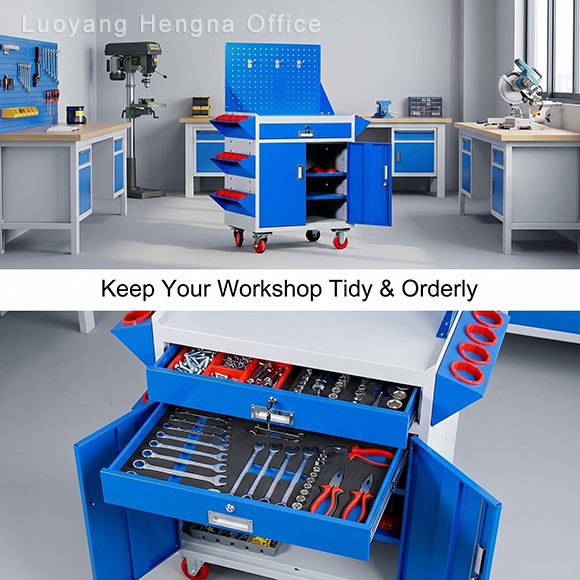

Knife holder slots. Cutting tools cause the most lost-time incidents in maintenance work. Utility knives, putty knives, scrapers, and small saws get tucked into pockets or laid flat on surfaces where they are hard to spot. The vertical slots on the side panel give each cutting tool a visible position. Technicians see immediately whether something is missing when they finish a job. Blades face inward for safety during transport.
Removable pegboard. The pegboard panel on the back holds the tools used most often — wrenches, pliers, screwdrivers, hex keys. Standard pegboard hooks fit into the pre-drilled holes. Technicians arrange tools in the order that matches their workflow. When a job requires access from both sides, the pegboard detaches from the frame in one piece. No tools needed to remove or reinstall it.
Lockable double-door cabinet. The cabinet compartment stores power drills, impact drivers, digital multimeters, and other expensive tools. Two doors swing open fully for easy access. A central locking mechanism secures both doors with a single key. On multi-shift operations, the lead technician locks the cabinet at shift change and the next crew picks up where the last shift left off.
Mobile casters with brakes. Four swivel casters move the cabinet across concrete, sealed epoxy, and tile surfaces. Lock two casters on each side and the cabinet stays put next to the equipment being serviced. The overall footprint fits between production lines and through standard doorways.
Industrial-grade steel construction. Cold-rolled steel frame and body panels with powder-coated finish. Resists grease, oil, coolant splashes, and cleaning chemicals common on factory floors. Welded joints hold their shape under repeated movement. The top surface works as a temporary work area for parts trays or laptops.
Application Scenarios
Routine equipment servicing. Maintenance teams perform scheduled inspections on conveyors, pumps, and compressors. The tool cabinet rolls to each piece of equipment stocked with the specific tools needed for that machine. Technicians do not carry tool bags or make trips to the central tool crib between tasks.
Emergency breakdown repairs. When a production line goes down, speed matters. The cabinet is pre-loaded with the most commonly used repair tools. Roll it to the breakdown location, unlock, and start working. The knife holder slots and pegboard mean every tool is visible and reachable in seconds.
Facility-wide preventive maintenance. Once a month or once a quarter, maintenance crews walk the entire facility checking electrical panels, lubricating bearings, and replacing worn components. The mobile cabinet travels with the crew. Cabinet shelves hold replacement parts alongside the tools needed to install them.
Mobile Tool Cabinet with Knife Holder Slots Specifications
| Feature | Detail |
|---|---|
| Overall Dimensions | 38.2″ W × 26.8″ D × 19.7″ H (970 × 680 × 500 mm) |
| Cabinet | Double-door lockable cabinet |
| Pegboard | Removable steel pegboard panel |
| Knife Holder | Multiple vertical slots |
| Casters | 3″ swivel casters with brakes |
| Lock | Central locking system |
| Frame Material | Cold-rolled steel, powder coated |
| Handle | Aluminum alloy |
FAQ
What tools fit in the knife holder slots?
Utility knives, putty knives, scrapers, small hand saws, and similar flat-bladed tools. Each slot accommodates one tool.
Can the pegboard be removed while tools are still hanging on it?
Remove tools before detaching the panel. The pegboard lifts off the frame in one piece and can be set on a workbench.
Does the lock secure the cabinet only or the entire unit?
The central lock secures the double-door cabinet. Tools on the pegboard and in the knife holder are not locked.
What is the best way to clean grease and oil off the steel surface?
Wipe with a damp cloth and mild degreaser. The powder-coated finish resists most industrial cleaning chemicals.
Can I get custom pegboard layouts for specific tool sets?
Yes. Custom pegboard hole patterns and hook configurations are available for bulk orders. Contact us with your tool list.
Does this cart fit through a standard 36-inch doorway?
Yes. The 38.2-inch width fits through standard commercial doorways and most interior doors.
Send us your tool list and facility layout — our engineering team will configure the best pegboard and bin setup for your maintenance crew.
